R16 SAE J517
Nominal DiameterΦ
Inside DiameterΦ
Reinforcement
DiameterΦ
Outside
Working Pressure
Proof Pressure
Burst Pressure
Bend Radius
inch
dash
mm
bar
psi
1/4
-4
6.2-7.0
11.9-12.5
13.8-14.6
345
5000
690
1379
50
5/16
-5
7.7-8.5
13.0-13.6
15.1-15.9
293
4250
586
1172
57
3/8
-6
9.3-10.1
15.5-16.1
17.8-18.6
276
4000
552
1130
63
1/2
-8
12.3-13.5
18.7-19.3
21.0-21.8
241
3500
483
965
88
5/8
-10
15.5-16.7
22.0-22.6
24.3-25.1
190
2750
380
758
100
3/4
-12
18.6-19.8
25.1-25.9
27.6-28.4
155
2250
310
620
120
1
-16
25.0-26.4
32.6-33.4
35.2-36.0
138
2000
150

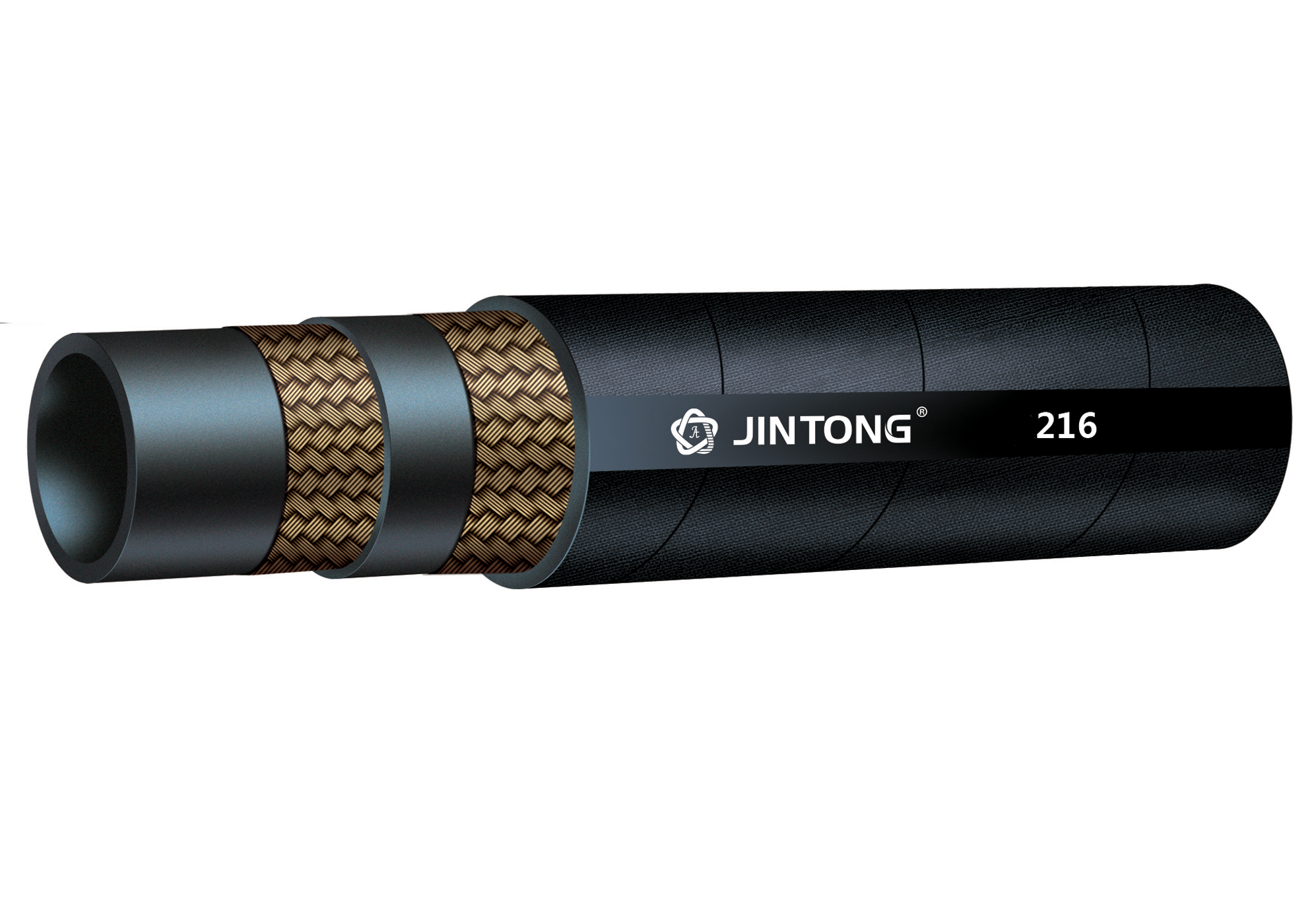

CONSTRUCTION:
This hose consists of an inner tube of oil synthetic rubber,single or two wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
WORKING TEMPERATURE:
From-40℃ up to +100℃.Available in black wrapped/smooth cover.
